diff -y eks-oneclick3.yaml eks-oneclick4.yaml
4주차 원클릭과 5주차 원클릭의 차이는
ebs-csi-driver 설치 안함
t3 설치
xRay true로 변경
언제나처럼 실습환경 설치
- Amazon EKS (myeks) 윈클릭 배포 & 기본 설정
- 기본 설정
# default 네임스페이스 적용 kubectl ns default # (옵션) context 이름 변경 NICK=<각자 자신의 닉네임> NICK=gasida kubectl ctx kubectl config rename-context admin@myeks.ap-northeast-2.eksctl.io $NICK@myeks # ExternalDNS MyDomain=<자신의 도메인> echo "export MyDomain=<자신의 도메인>" >> /etc/profile *MyDomain=gasida.link* *echo "export MyDomain=gasida.link" >> /etc/profile* MyDnzHostedZoneId=$(aws route53 list-hosted-zones-by-name --dns-name "${MyDomain}." --query "HostedZones[0].Id" --output text) echo $MyDomain, $MyDnzHostedZoneId curl -s -O <https://raw.githubusercontent.com/gasida/PKOS/main/aews/externaldns.yaml> MyDomain=$MyDomain MyDnzHostedZoneId=$MyDnzHostedZoneId envsubst < externaldns.yaml | kubectl apply -f - # kube-ops-view helm repo add geek-cookbook <https://geek-cookbook.github.io/charts/> helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set env.TZ="Asia/Seoul" --namespace kube-system kubectl patch svc -n kube-system kube-ops-view -p '{"spec":{"type":"LoadBalancer"}}' kubectl **annotate** service kube-ops-view -n kube-system "external-dns.alpha.kubernetes.io/hostname=**kubeopsview**.$MyDomain" echo -e "Kube Ops View URL = http://**kubeopsview**.$MyDomain:8080/#scale=1.5" # AWS LB Controller helm repo add eks <https://aws.github.io/eks-charts> helm repo update helm install aws-load-balancer-controller eks/aws-load-balancer-controller -n kube-system --set clusterName=$CLUSTER_NAME \\ --set serviceAccount.create=false --set serviceAccount.name=aws-load-balancer-controller # 노드 보안그룹 ID 확인 NGSGID=$(aws ec2 describe-security-groups --filters Name=group-name,Values='*ng1*' --query "SecurityGroups[*].[GroupId]" --output text) aws ec2 authorize-security-group-ingress --group-id $NGSGID --protocol '-1' --cidr 192.168.1.100/32- 프로메테우스 & 그라파나(admin / prom-operator) 설치 : 대시보드 추천 15757 17900 15172
# 사용 리전의 인증서 ARN 확인 CERT_ARN=`aws acm list-certificates --query 'CertificateSummaryList[].CertificateArn[]' --output text` echo $CERT_ARN # repo 추가 helm repo add prometheus-community <https://prometheus-community.github.io/helm-charts> # 파라미터 파일 생성 cat < monitor-values.yaml **prometheus**: prometheusSpec: podMonitorSelectorNilUsesHelmValues: false serviceMonitorSelectorNilUsesHelmValues: false retention: 5d retentionSize: "10GiB" verticalPodAutoscaler: enabled: true ingress: enabled: true ingressClassName: alb hosts: - prometheus.$MyDomain paths: - /* annotations: alb.ingress.kubernetes.io/scheme: internet-facing alb.ingress.kubernetes.io/target-type: ip alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]' alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN alb.ingress.kubernetes.io/success-codes: 200-399 alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb alb.ingress.kubernetes.io/group.name: study alb.ingress.kubernetes.io/ssl-redirect: '443' grafana: defaultDashboardsTimezone: Asia/Seoul adminPassword: prom-operator ingress: enabled: true ingressClassName: alb hosts: - grafana.$MyDomain paths: - /* annotations: alb.ingress.kubernetes.io/scheme: internet-facing alb.ingress.kubernetes.io/target-type: ip alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]' alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN alb.ingress.kubernetes.io/success-codes: 200-399 alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb alb.ingress.kubernetes.io/group.name: study alb.ingress.kubernetes.io/ssl-redirect: '443' defaultRules: create: false kubeControllerManager: enabled: false kubeEtcd: enabled: false kubeScheduler: enabled: false alertmanager: enabled: false EOT # 배포 kubectl create ns monitoring helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 45.27.2 \\ --set prometheus.prometheusSpec.scrapeInterval='15s' --set prometheus.prometheusSpec.evaluationInterval='15s' \\ -f monitor-values.yaml --namespace monitoring # Metrics-server 배포 **kubectl apply -f <https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml**>
- EKS Node Viewer 설치 : 노드 할당 가능 용량과 요청 request 리소스 표시, 실제 파드 리소스 사용량 X - 링크
- It displays the scheduled pod resource requests vs the allocatable capacity on the node. It does not look at the actual pod resource usage.
# go 설치 yum install -y go # EKS Node Viewer 설치 : 현재 ec2 spec에서는 **설치에 다소 시간이 소요됨** = **2분 이상** go install github.com/awslabs/eks-node-viewer/cmd/eks-node-viewer@latest # bin 확인 및 사용 tree ~/go/bin **cd ~/go/bin** **./eks-node-viewer** 3 nodes (875m/5790m) 15.1% cpu ██████░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░ $0.156/hour | $113.880/month 20 pods (0 pending 20 running 20 bound) ip-192-168-3-196.ap-northeast-2.compute.internal cpu ████████░░░░░░░░░░░░░░░░░░░░░░░░░░░ 22% (7 pods) t3.medium/$0.0520 On-Demand ip-192-168-1-91.ap-northeast-2.compute.internal cpu ████░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░ 12% (6 pods) t3.medium/$0.0520 On-Demand ip-192-168-2-185.ap-northeast-2.compute.internal cpu ████░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░ 12% (7 pods) t3.medium/$0.0520 On-Demand Press any key to quit **명령 샘플** # Standard usage **./eks-node-viewer** # Display both CPU and Memory Usage **./eks-node-viewer --resources cpu,memory** # Karenter nodes only **./eks-node-viewer --node-selector "karpenter.sh/provisioner-name"** # Display extra labels, i.e. AZ **./eks-node-viewer --extra-labels topology.kubernetes.io/zone** # Specify a particular AWS profile and region AWS_PROFILE=myprofile AWS_REGION=us-west-2 **기본 옵션** # select only Karpenter managed nodes node-selector=karpenter.sh/provisioner-name # display both CPU and memory resources=cpu,memory
HPA, VPA, CA에 대한 설명
HPA - 스케일인/아웃, KEDA
VPA - 스케일업/다운(사용 잘 안함)
CA - 노드 확장/축소
HPA 실습 시작
# Run and expose php-apache server
curl -s -O <https://raw.githubusercontent.com/kubernetes/website/main/content/en/examples/application/php-apache.yaml>
cat php-apache.yaml | yh
**kubectl apply -f php-apache.yaml**
# 확인
kubectl exec -it deploy/php-apache -- **cat /var/www/html/index.php**
...
# 모니터링 : 터미널2개 사용
watch -d 'kubectl get hpa,pod;echo;kubectl top pod;echo;kubectl top node'
kubectl exec -it deploy/php-apache -- top
# 접속
PODIP=$(kubectl get pod -l run=php-apache -o jsonpath={.items[0].status.podIP})
curl -s $PODIP; echo

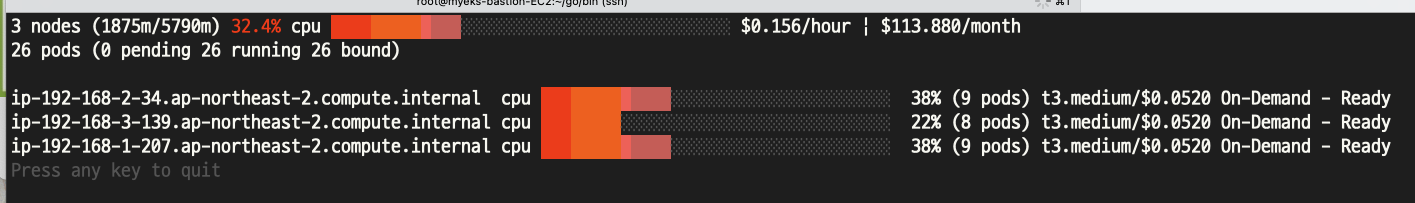

현재 노드 사용량은 위와같다.
# Create the HorizontalPodAutoscaler : requests.cpu=200m - [알고리즘](<https://kubernetes.io/docs/tasks/run-application/horizontal-pod-autoscale/#algorithm-details>)
# Since each pod requests **200 milli-cores** by kubectl run, this means an average CPU usage of **100 milli-cores**.
kubectl autoscale deployment php-apache **--cpu-percent=50** --min=1 --max=10
**kubectl describe hpa**
...
Metrics: ( current / target )
resource cpu on pods (as a percentage of request): 0% (1m) / 50%
Min replicas: 1
Max replicas: 10
Deployment pods: 1 current / 1 desired
...
# HPA 설정 확인
kubectl krew install neat
kubectl get hpa php-apache -o yaml
**kubectl get hpa php-apache -o yaml | kubectl neat | yh**
spec:
minReplicas: 1 # [4] 또는 최소 1개까지 줄어들 수도 있습니다
maxReplicas: 10 # [3] 포드를 최대 5개까지 늘립니다
**scaleTargetRef**:
apiVersion: apps/v1
kind: **Deployment**
name: **php-apache** # [1] php-apache 의 자원 사용량에서
**metrics**:
- type: **Resource**
resource:
name: **cpu**
target:
type: **Utilization**
**averageUtilization**: 50 # [2] CPU 활용률이 50% 이상인 경우
# 반복 접속 1 (파드1 IP로 접속) >> 증가 확인 후 중지
while true;do curl -s $PODIP; sleep 0.5; done
# 반복 접속 2 (서비스명 도메인으로 접속) >> 증가 확인(몇개까지 증가되는가? 그 이유는?) 후 중지 >> **중지 5분 후** 파드 갯수 감소 확인
# Run this in a separate terminal
# so that the load generation continues and you can carry on with the rest of the steps
kubectl run -i --tty load-generator --rm --image=**busybox**:1.28 --restart=Never -- /bin/sh -c "while sleep 0.01; do wget -q -O- ; done"
사용량 올라가는중
위와같이 파드가 오토스케일링된것을 확인할수있다.
이번엔 KEDA
HPA는 CPU, Memory 메트릭을 기반으로 스케일 인/아웃을 하는데 KEDA는 특정 이벤트를 기반으로 스케일여부를 결정한다.
지원 메트릭이 무지하게 많다.
- KEDA with Helm : 특정 **이벤트(cron 등)**기반의 파드 오토 스케일링 - Chart Grafana Cron
# KEDA 설치 cat < keda-values.yaml metricsServer: useHostNetwork: true **prometheus**: metricServer: enabled: true port: 9022 portName: metrics path: /metrics serviceMonitor: # Enables ServiceMonitor creation for the Prometheus Operator enabled: true podMonitor: # Enables PodMonitor creation for the Prometheus Operator enabled: true operator: enabled: true port: 8080 serviceMonitor: # Enables ServiceMonitor creation for the Prometheus Operator enabled: true podMonitor: # Enables PodMonitor creation for the Prometheus Operator enabled: true webhooks: enabled: true port: 8080 serviceMonitor: # Enables ServiceMonitor creation for the Prometheus webhooks enabled: true EOT kubectl create namespace **keda** helm repo add kedacore <https://kedacore.github.io/charts> helm install **keda** kedacore/keda --version 2.10.2 --namespace **keda -f** keda-values.yaml # KEDA 설치 확인 kubectl **get-all** -n keda kubectl get **all** -n keda **kubectl get crd | grep keda** # keda 네임스페이스에 디플로이먼트 생성 **kubectl apply -f php-apache.yaml -n keda kubectl get pod -n keda** # ScaledObject ****정책 생성 : cron cat < keda-cron.yaml apiVersion: keda.sh/v1alpha1 kind: **ScaledObject** metadata: name: php-apache-cron-scaled spec: minReplicaCount: 0 maxReplicaCount: 2 pollingInterval: 30 cooldownPeriod: 300 **scaleTargetRef**: apiVersion: apps/v1 kind: Deployment name: php-apache **triggers**: - type: **cron** metadata: timezone: Asia/Seoul **start**: 00,15,30,45 * * * * **end**: 05,20,35,50 * * * * **desiredReplicas**: "1" EOT **kubectl apply -f keda-cron.yaml -n keda** # 그라파나 대시보드 추가 # 모니터링 watch -d 'kubectl get ScaledObject,hpa,pod -n keda' kubectl get ScaledObject -w # 확인 kubectl get ScaledObject,hpa,pod -n keda **kubectl get hpa -o jsonpath={.items[0].spec} -n keda | jq** ... "metrics": [ { "**external**": { "metric": { "name": "s0-cron-Asia-Seoul-**00,15,30,45**xxxx-**05,20,35,50**xxxx", "selector": { "matchLabels": { "scaledobject.keda.sh/name": "php-apache-cron-scaled" } } }, "**target**": { "**averageValue**": "1", "type": "AverageValue" } }, "type": "**External**" } # KEDA 및 deployment 등 삭제 kubectl delete -f keda-cron.yaml -n keda && kubectl delete deploy php-apache -n keda && helm uninstall keda -n keda kubectl delete namespace keda
설치 완료, 30분에 생성되고 35분에 삭제될것이다.
29분의 상태
30분이되니 php-apache 파드가 생성된것을 확인할수있다.
CA 실습 시작
HPA는 파드확장, CA는 노드 확장개념이다.
# 현재 autoscaling(ASG) 정보 확인
# aws autoscaling describe-auto-scaling-groups --query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='**클러스터이름**']].[AutoScalingGroupName, MinSize, MaxSize,DesiredCapacity]" --output table
**aws autoscaling describe-auto-scaling-groups \\
--query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='myeks']].[AutoScalingGroupName, MinSize, MaxSize,DesiredCapacity]" \\
--output table**
-----------------------------------------------------------------
| DescribeAutoScalingGroups |
+------------------------------------------------+----+----+----+
| eks-ng1-44c41109-daa3-134c-df0e-0f28c823cb47 | 3 | 3 | 3 |
+------------------------------------------------+----+----+----+
# MaxSize 6개로 수정
**export ASG_NAME=$(aws autoscaling describe-auto-scaling-groups --query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='myeks']].AutoScalingGroupName" --output text)
aws autoscaling update-auto-scaling-group --auto-scaling-group-name ${ASG_NAME} --min-size 3 --desired-capacity 3 --max-size 6**
# 확인
**aws autoscaling describe-auto-scaling-groups --query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='myeks']].[AutoScalingGroupName, MinSize, MaxSize,DesiredCapacity]" --output table**
-----------------------------------------------------------------
| DescribeAutoScalingGroups |
+------------------------------------------------+----+----+----+
| eks-ng1-c2c41e26-6213-a429-9a58-02374389d5c3 | 3 | 6 | 3 |
+------------------------------------------------+----+----+----+
# 배포 : Deploy the Cluster Autoscaler (CA)
curl -s -O <https://raw.githubusercontent.com/kubernetes/autoscaler/master/cluster-autoscaler/cloudprovider/aws/examples/cluster-autoscaler-autodiscover.yaml>
sed -i "s//$CLUSTER_NAME/g" cluster-autoscaler-autodiscover.yaml
kubectl apply -f cluster-autoscaler-autodiscover.yaml
# 확인
kubectl get pod -n kube-system | grep cluster-autoscaler
kubectl describe deployments.apps -n kube-system cluster-autoscaler
# (옵션) cluster-autoscaler 파드가 동작하는 워커 노드가 퇴출(evict) 되지 않게 설정
kubectl -n kube-system annotate deployment.apps/cluster-autoscaler cluster-autoscaler.kubernetes.io/safe-to-evict="false"
현재 ec2 3대임을 확인할수있다.
# 모니터링
kubectl get nodes -w
while true; do kubectl get node; echo "------------------------------" ; date ; sleep 1; done
while true; do aws ec2 describe-instances --query "Reservations[*].Instances[*].{PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output text ; echo "------------------------------"; date; sleep 1; done
# Deploy a Sample App
# We will deploy an sample nginx application as a ReplicaSet of 1 Pod
cat <<EoF> nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-to-scaleout
spec:
replicas: 1
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
service: nginx
app: nginx
spec:
containers:
- image: nginx
name: nginx-to-scaleout
resources:
limits:
cpu: 500m
memory: 512Mi
requests:
cpu: 500m
memory: 512Mi
EoF
kubectl apply -f nginx.yaml
kubectl get deployment/nginx-to-scaleout
# Scale our ReplicaSet
# Let’s scale out the replicaset to 15
kubectl scale --replicas=15 deployment/nginx-to-scaleout && date
# 확인
kubectl get pods -l app=nginx -o wide --watch
kubectl -n kube-system logs -f deployment/cluster-autoscaler
# 노드 자동 증가 확인
kubectl get nodes
aws autoscaling describe-auto-scaling-groups \\
--query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='**myeks**']].[AutoScalingGroupName, MinSize, MaxSize,DesiredCapacity]" \\
--output table
**./eks-node-viewer**
42 pods (0 pending 42 running 42 bound)
ip-192-168-3-196.ap-northeast-2.compute.internal cpu ███████████████████████████████████ 100% (10 pods) t3.medium/$0.0520 On-Demand
ip-192-168-1-91.ap-northeast-2.compute.internal cpu ███████████████████████████████░░░░ 89% (9 pods) t3.medium/$0.0520 On-Demand
ip-192-168-2-185.ap-northeast-2.compute.internal cpu █████████████████████████████████░░ 95% (11 pods) t3.medium/$0.0520 On-Demand
ip-192-168-2-87.ap-northeast-2.compute.internal cpu █████████████████████████████░░░░░░ 84% (6 pods) t3.medium/$0.0520 On-Demand
ip-192-168-3-15.ap-northeast-2.compute.internal cpu █████████████████████████████░░░░░░ 84% (6 pods) t3.medium/$0.0520 On-Demand
# 디플로이먼트 삭제
kubectl delete -f nginx.yaml && date
# **노드 갯수 축소** : 기본은 10분 후 scale down 됨, 물론 아래 flag 로 시간 수정 가능 >> 그러니 **디플로이먼트 삭제 후 10분 기다리고 나서 보자!**
# By default, cluster autoscaler will wait 10 minutes between scale down operations,
# you can adjust this using the --scale-down-delay-after-add, --scale-down-delay-after-delete,
# and --scale-down-delay-after-failure flag.
# E.g. --scale-down-delay-after-add=5m to decrease the scale down delay to 5 minutes after a node has been added.
# 터미널1
watch -d kubectl get node
위와같이 배포를 진행하면
인스턴스가 생성된다. 즉 노드가 확장되는것이다.
이번엔 CPA
노드 수 증가에 비례하여 성능 처리가 필요한 애플리케이션(컨테이너/파드)를 수평으로 자동 확장하는 개념
#
helm repo add cluster-proportional-autoscaler <https://kubernetes-sigs.github.io/cluster-proportional-autoscaler>
# CPA규칙을 설정하고 helm차트를 릴리즈 필요
helm upgrade --install cluster-proportional-autoscaler cluster-proportional-autoscaler/cluster-proportional-autoscaler
# nginx 디플로이먼트 배포
cat < cpa-nginx.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: nginx-deployment
spec:
replicas: 1
selector:
matchLabels:
app: nginx
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:latest
resources:
limits:
cpu: "100m"
memory: "64Mi"
requests:
cpu: "100m"
memory: "64Mi"
ports:
- containerPort: 80
EOT
kubectl apply -f cpa-nginx.yaml
# CPA 규칙 설정
cat < cpa-values.yaml
config:
ladder:
nodesToReplicas:
- [1, 1]
- [2, 2]
- [3, 3]
- [4, 3]
- [5, 5]
options:
namespace: default
target: "deployment/nginx-deployment"
EOF
# 모니터링
**watch -d kubectl get pod**
# helm 업그레이드
helm upgrade --install cluster-proportional-autoscaler -f cpa-values.yaml cluster-proportional-autoscaler/cluster-proportional-autoscaler
# 노드 5개로 증가
export ASG_NAME=$(aws autoscaling describe-auto-scaling-groups --query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='myeks']].AutoScalingGroupName" --output text)
aws autoscaling update-auto-scaling-group --auto-scaling-group-name ${ASG_NAME} --min-size 5 --desired-capacity 5 --max-size 5
aws autoscaling describe-auto-scaling-groups --query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='myeks']].[AutoScalingGroupName, MinSize, MaxSize,DesiredCapacity]" --output table
# 노드 4개로 축소
aws autoscaling update-auto-scaling-group --auto-scaling-group-name ${ASG_NAME} --min-size 4 --desired-capacity 4 --max-size 4
aws autoscaling describe-auto-scaling-groups --query "AutoScalingGroups[? Tags[? (Key=='eks:cluster-name') && Value=='myeks']].[AutoScalingGroupName, MinSize, MaxSize,DesiredCapacity]" --output table
마지막으로 karpenter 이다.
karpenter는 CA보다 더 똑똑하게 작동한다.
- Kubernetes 스케줄러가 예약할 수 없다고 표시한 파드들을 감시합니다.
- 파드가 요청한 자원 요구사항, 노드 선택자, 어피니티, 허용 조건, 그리고 토폴로지 분산 제약조건을 평가합니다.
- 파드 요구사항을 충족하는 노드를 프로비저닝합니다.
- 파드를 새로운 노드에 예약합니다.
- 더 이상 필요하지 않은 경우 노드를 제거합니다.
karpenter 실습은 새로 배포하여 실습한다.
# YAML 파일 다운로드
curl -O <https://s3.ap-northeast-2.amazonaws.com/cloudformation.cloudneta.net/K8S/**karpenter-preconfig.yaml**>
# CloudFormation 스택 배포
예시) aws cloudformation deploy --template-file **karpenter-preconfig.yaml** --stack-name **myeks2** --parameter-overrides KeyName=**kp-gasida** SgIngressSshCidr=$(curl -s ipinfo.io/ip)/32 MyIamUserAccessKeyID=**AKIA5...** MyIamUserSecretAccessKey=**'CVNa2...'** ClusterBaseName=**myeks2** --region ap-northeast-2
# CloudFormation 스택 배포 완료 후 작업용 EC2 IP 출력
aws cloudformation describe-stacks --stack-name **myeks2** --query 'Stacks[*].**Outputs[0]**.OutputValue' --output text
# 작업용 EC2 SSH 접속
ssh -i **~/.ssh/kp-gasida.pem** ec2-user@$(aws cloudformation describe-stacks --stack-name **myeks2** --query 'Stacks[*].Outputs[0].OutputValue' --output text)
# IP 주소 확인 : 172.30.0.0/16 VPC 대역에서 172.30.1.0/24 대역을 사용 중
ip -br -c addr
# EKS Node Viewer 설치 : 현재 ec2 spec에서는 **설치에 다소 시간이 소요됨** = **2분 이상**
go install github.com/awslabs/eks-node-viewer/cmd/eks-node-viewer@latest
# [터미널1] bin 확인 및 사용
tree ~/go/bin
cd ~/go/bin
**./eks-node-viewer -h**
./eks-node-viewer # EKS 배포 완료 후 실행 하자
```bash
# 환경변수 정보 확인
export | egrep 'ACCOUNT|AWS_|CLUSTER' | egrep -v 'SECRET|KEY'
# 환경변수 설정
export KARPENTER_VERSION=v0.27.5
export TEMPOUT=$(mktemp)
**echo $KARPENTER_VERSION $CLUSTER_NAME $AWS_DEFAULT_REGION $AWS_ACCOUNT_ID $TEMPOUT**
# CloudFormation 스택으로 IAM Policy, Role, EC2 Instance Profile 생성 : **3분 정도 소요**
curl -fsSL https://karpenter.sh/"${KARPENTER_VERSION}"/getting-started/getting-started-with-karpenter/cloudformation.yaml > $TEMPOUT \
&& aws cloudformation deploy \
--stack-name "Karpenter-${CLUSTER_NAME}" \
--template-file "${TEMPOUT}" \
--capabilities CAPABILITY_NAMED_IAM \
--parameter-overrides "ClusterName=${CLUSTER_NAME}"
# 클러스터 생성 : myeks2 EKS 클러스터 생성 **19분 정도** 소요
**eksctl create cluster** -f - <<EOF
---
apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
name: ${CLUSTER_NAME}
region: ${AWS_DEFAULT_REGION}
version: "1.24"
tags:
karpenter.sh/discovery: ${CLUSTER_NAME}
iam:
withOIDC: true
serviceAccounts:
- metadata:
name: karpenter
namespace: karpenter
roleName: ${CLUSTER_NAME}-karpenter
attachPolicyARNs:
- arn:aws:iam::${AWS_ACCOUNT_ID}:policy/KarpenterControllerPolicy-${CLUSTER_NAME}
roleOnly: true
iamIdentityMappings:
- arn: "arn:aws:iam::${AWS_ACCOUNT_ID}:role/KarpenterNodeRole-${CLUSTER_NAME}"
username: system:node:{{EC2PrivateDNSName}}
groups:
- system:bootstrappers
- system:nodes
managedNodeGroups:
- instanceType: m5.large
amiFamily: AmazonLinux2
name: ${CLUSTER_NAME}-ng
desiredCapacity: 2
minSize: 1
maxSize: 10
iam:
withAddonPolicies:
externalDNS: true
*## Optionally run on fargate
# fargateProfiles:
# - name: karpenter
# selectors:
# - namespace: karpenter*
EOF
**# eks 배포 확인**
eksctl get cluster
eksctl get nodegroup --cluster $CLUSTER_NAME
eksctl get **iamidentitymapping** --cluster $CLUSTER_NAME
eksctl get **iamserviceaccount** --cluster $CLUSTER_NAME
eksctl get addon --cluster $CLUSTER_NAME

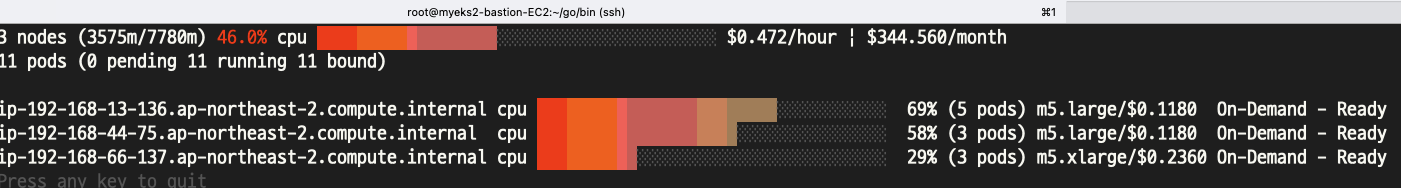

# [터미널1] eks-node-viewer
cd ~/go/bin && ./eks-node-viewer
**# k8s 확인**
kubectl cluster-info
kubectl get node --label-columns=node.kubernetes.io/instance-type,eks.amazonaws.com/capacityType,topology.kubernetes.io/zone
kubectl get pod -n kube-system -owide
**kubectl describe cm -n kube-system aws-auth**
...
mapRoles:
----
- groups:
- system:bootstrappers
- system:**nodes**
**rolearn**: arn:aws:iam::911283464785:role/**KarpenterNodeRole-myeks2**
username: system:node:{{EC2PrivateDNSName}}
- groups:
- system:bootstrappers
- system:nodes
rolearn: arn:aws:iam::911283464785:role/eksctl-myeks2-nodegroup-myeks2-ng-NodeInstanceRole-1KDXF4FLKKX1B
username: system:node:{{EC2PrivateDNSName}}
...
# 카펜터 설치를 위한 환경 변수 설정 및 확인
export CLUSTER_ENDPOINT="$(aws eks describe-cluster --name ${CLUSTER_NAME} --query "cluster.endpoint" --output text)"
export KARPENTER_IAM_ROLE_ARN="arn:aws:iam::${AWS_ACCOUNT_ID}:role/${CLUSTER_NAME}-karpenter"
echo $CLUSTER_ENDPOINT $KARPENTER_IAM_ROLE_ARN
# EC2 Spot Fleet 사용을 위한 service-linked-role 생성 확인 : 만들어있는것을 확인하는 거라 아래 에러 출력이 정상!
# If the role has already been successfully created, you will see:
# An error occurred (InvalidInput) when calling the CreateServiceLinkedRole operation: Service role name AWSServiceRoleForEC2Spot has been taken in this account, please try a different suffix.
aws iam create-service-linked-role --aws-service-name spot.amazonaws.com || true
# docker logout : Logout of docker to perform an unauthenticated pull against the public ECR
docker logout public.ecr.aws
# karpenter 설치
helm upgrade --install karpenter oci://public.ecr.aws/karpenter/karpenter --version ${KARPENTER_VERSION} --namespace karpenter --create-namespace \
--set serviceAccount.annotations."eks\.amazonaws\.com/role-arn"=${KARPENTER_IAM_ROLE_ARN} \
--set settings.aws.clusterName=${CLUSTER_NAME} \
--set settings.aws.defaultInstanceProfile=KarpenterNodeInstanceProfile-${CLUSTER_NAME} \
--set settings.aws.interruptionQueueName=${CLUSTER_NAME} \
--set controller.resources.requests.cpu=1 \
--set controller.resources.requests.memory=1Gi \
--set controller.resources.limits.cpu=1 \
--set controller.resources.limits.memory=1Gi \
--wait
# 확인
kubectl get-all -n karpenter
kubectl get all -n karpenter
kubectl get cm -n karpenter karpenter-global-settings -o jsonpath={.data} | jq
kubectl get crd | grep karpenter
```
위와같이 설치를 진행해준다.
그다음 진행
#
cat <<EOF | kubectl apply -f -
apiVersion: karpenter.sh/v1alpha5
kind: **Provisioner**
metadata:
name: default
**spec**:
requirements:
- key: karpenter.sh/capacity-type
operator: In
values: ["**spot**"]
limits:
resources:
cpu: 1000
providerRef:
name: default
**ttlSecondsAfterEmpty**: 30
---
apiVersion: karpenter.k8s.aws/v1alpha1
kind: **AWSNodeTemplate**
metadata:
name: default
spec:
subnetSelector:
karpenter.sh/discovery: ${CLUSTER_NAME}
securityGroupSelector:
karpenter.sh/discovery: ${CLUSTER_NAME}
EOF
# 확인

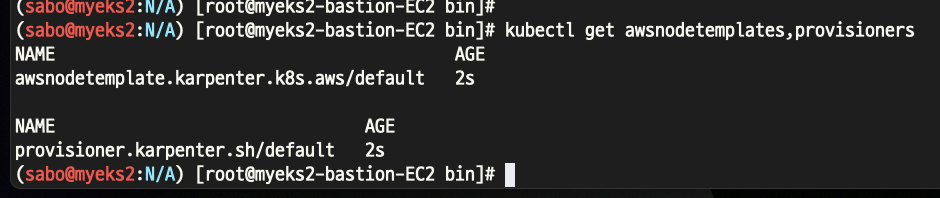

kubectl get awsnodetemplates,provisioners
위와같이 Provisioner 설치를 진행한다.
# pause 파드 1개에 CPU 1개 최소 보장 할당
cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
name: inflate
spec:
replicas: 0
selector:
matchLabels:
app: inflate
template:
metadata:
labels:
app: inflate
spec:
terminationGracePeriodSeconds: 0
containers:
- name: inflate
image: public.ecr.aws/eks-distro/kubernetes/pause:3.7
resources:
**requests:
cpu: 1**
EOF
kubectl scale deployment inflate --replicas 5
kubectl logs -f -n karpenter -l app.kubernetes.io/name=karpenter -c controller
# 스팟 인스턴스 확인!
aws ec2 describe-spot-instance-requests --filters "Name=state,Values=active" --output table
kubectl get node -l karpenter.sh/capacity-type=spot -o jsonpath='{.items[0].metadata.labels}' | jq
**kubectl get node --label-columns=eks.amazonaws.com/capacityType,karpenter.sh/capacity-type,node.kubernetes.io/instance-type**
NAME STATUS ROLES AGE VERSION CAPACITYTYPE CAPACITY-TYPE INSTANCE-TYPE
ip-192-168-165-220.ap-northeast-2.compute.internal Ready <none> 2m37s v1.24.13-eks-0a21954 spot c5a.2xlarge
ip-192-168-57-91.ap-northeast-2.compute.internal Ready <none> 13m v1.24.13-eks-0a21954 ON_DEMAND m5.large
ip-192-168-75-253.ap-northeast-2.compute.internal Ready <none> 13m v1.24.13-eks-0a21954 ON_DEMAND m5.large
실습을 진행하는 과정에서
위와같은 에러가 발생했다.
https://github.com/aws/karpenter/issues/2902
와 동일한 에러인지... 추후 확인이 필요하다.
#
kubectl delete provisioners default
cat <<EOF | kubectl apply -f -
apiVersion: karpenter.sh/v1alpha5
kind: **Provisioner**
metadata:
name: default
spec:
**consolidation:
enabled: true**
labels:
type: karpenter
limits:
resources:
cpu: 1000
memory: 1000Gi
providerRef:
name: default
requirements:
- key: karpenter.sh/capacity-type
operator: In
values:
- on-demand
- key: node.kubernetes.io/instance-type
operator: In
values:
- c5.large
- m5.large
- m5.xlarge
EOF
#
cat <<EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
name: inflate
spec:
replicas: 0
selector:
matchLabels:
app: inflate
template:
metadata:
labels:
app: inflate
spec:
terminationGracePeriodSeconds: 0
containers:
- name: inflate
image: public.ecr.aws/eks-distro/kubernetes/pause:3.7
resources:
requests:
cpu: 1
EOF
kubectl scale deployment inflate --replicas 12
kubectl logs -f -n karpenter -l app.kubernetes.io/name=karpenter -c controller
# 인스턴스 확인
# This changes the total memory request for this deployment to around 12Gi,
# which when adjusted to account for the roughly 600Mi reserved for the kubelet on each node means that this will fit on 2 instances of type m5.large:
kubectl get node -l type=karpenter
**kubectl get node --label-columns=eks.amazonaws.com/capacityType,karpenter.sh/capacity-type**
**kubectl get node --label-columns=node.kubernetes.io/instance-type,topology.kubernetes.io/zone**
# Next, scale the number of replicas back down to 5:
kubectl scale deployment inflate --replicas 5
# The output will show Karpenter identifying specific nodes to cordon, drain and then terminate:
**kubectl logs -f -n karpenter -l app.kubernetes.io/name=karpenter -c controller**
2023-05-17T07:02:00.768Z INFO controller.deprovisioning deprovisioning via **consolidation delete**, terminating 1 machines ip-192-168-14-81.ap-northeast-2.compute.internal/m5.xlarge/on-demand {"commit": "d7e22b1-dirty"}
2023-05-17T07:02:00.803Z INFO controller.termination **cordoned** node {"commit": "d7e22b1-dirty", "node": "ip-192-168-14-81.ap-northeast-2.compute.internal"}
2023-05-17T07:02:01.320Z INFO controller.termination **deleted** node {"commit": "d7e22b1-dirty", "node": "ip-192-168-14-81.ap-northeast-2.compute.internal"}
2023-05-17T07:02:39.283Z DEBUG controller **deleted** launch template {"commit": "d7e22b1-dirty", "launch-template": "karpenter.k8s.aws/9547068762493117560"}
# Next, scale the number of replicas back down to 1
kubectl scale deployment inflate --replicas 1
**kubectl logs -f -n karpenter -l app.kubernetes.io/name=karpenter -c controller**
2023-05-17T07:05:08.877Z INFO controller.deprovisioning deprovisioning via consolidation delete, terminating 1 machines ip-192-168-145-253.ap-northeast-2.compute.internal/m5.xlarge/on-demand {"commit": "d7e22b1-dirty"}
2023-05-17T07:05:08.914Z INFO controller.termination cordoned node {"commit": "d7e22b1-dirty", "node": "ip-192-168-145-253.ap-northeast-2.compute.internal"}
2023-05-17T07:05:09.316Z INFO controller.termination deleted node {"commit": "d7e22b1-dirty", "node": "ip-192-168-145-253.ap-northeast-2.compute.internal"}
2023-05-17T07:05:25.923Z INFO controller.deprovisioning deprovisioning via consolidation replace, terminating 1 machines ip-192-168-48-2.ap-northeast-2.compute.internal/m5.xlarge/on-demand and replacing with on-demand machine from types m5.large, c5.large {"commit": "d7e22b1-dirty"}
2023-05-17T07:05:25.940Z INFO controller.deprovisioning launching machine with 1 pods requesting {"cpu":"1125m","pods":"4"} from types m5.large, c5.large {"commit": "d7e22b1-dirty", "provisioner": "default"}
2023-05-17T07:05:26.341Z DEBUG controller.deprovisioning.cloudprovider created launch template {"commit": "d7e22b1-dirty", "provisioner": "default", "launch-template-name": "karpenter.k8s.aws/9547068762493117560", "launch-template-id": "lt-036151ea9df7d309f"}
2023-05-17T07:05:28.182Z INFO controller.deprovisioning.cloudprovider launched instance {"commit": "d7e22b1-dirty", "provisioner": "default", "id": "i-0eb3c8ff63724dc95", "hostname": "ip-192-168-144-98.ap-northeast-2.compute.internal", "instance-type": "c5.large", "zone": "ap-northeast-2b", "capacity-type": "on-demand", "capacity": {"cpu":"2","ephemeral-storage":"20Gi","memory":"3788Mi","pods":"29"}}
2023-05-17T07:06:12.307Z INFO controller.termination cordoned node {"commit": "d7e22b1-dirty", "node": "ip-192-168-48-2.ap-northeast-2.compute.internal"}
2023-05-17T07:06:12.856Z INFO controller.termination deleted node {"commit": "d7e22b1-dirty", "node": "ip-192-168-48-2.ap-northeast-2.compute.internal"}
# 인스턴스 확인
kubectl get node -l type=karpenter
kubectl get node --label-columns=eks.amazonaws.com/capacityType,karpenter.sh/capacity-type
kubectl get node --label-columns=node.kubernetes.io/instance-type,topology.kubernetes.io/zone
# 삭제
kubectl delete deployment inflate
마지막은 Consolidation 이다.
위와같이 새로 provisioners 새로 생성해주고

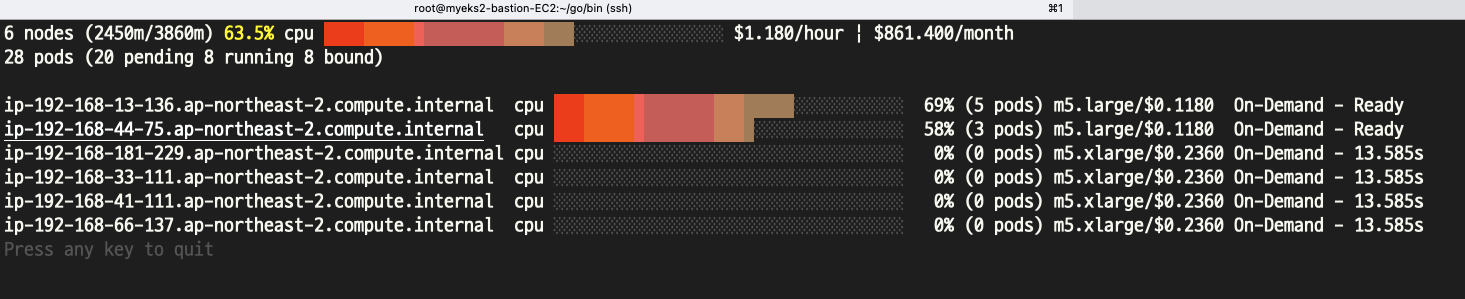

거의 실시간으로 확장이된다. !!! 굿!!!!
이번에는 위와같이 줄여보면 바로바로 줄어든다. !
'job > eks' 카테고리의 다른 글
| 7주차 eks 스터디 (0) | 2023.06.08 |
|---|---|
| eks 6주차 (0) | 2023.05.31 |
| 4주차 eks 스터디 (0) | 2023.05.16 |
| 3주차 eks 스터디 (0) | 2023.05.13 |
| eks 2주차 (0) | 2023.05.02 |
