이번주 주제는 EKS automation 이다.
우선 실습환경 배포
# YAML 파일 다운로드
curl -O <https://s3.ap-northeast-2.amazonaws.com/cloudformation.cloudneta.net/K8S/**eks-oneclick6.yaml**>
# CloudFormation 스택 배포
예시) aws cloudformation deploy --template-file **eks-oneclick6.yaml** --stack-name **myeks** --parameter-overrides KeyName=**kp-gasida** SgIngressSshCidr=$(curl -s ipinfo.io/ip)/32 MyIamUserAccessKeyID=**AKIA5...** MyIamUserSecretAccessKey=**'CVNa2...'** ClusterBaseName=**myeks** --region ap-northeast-2

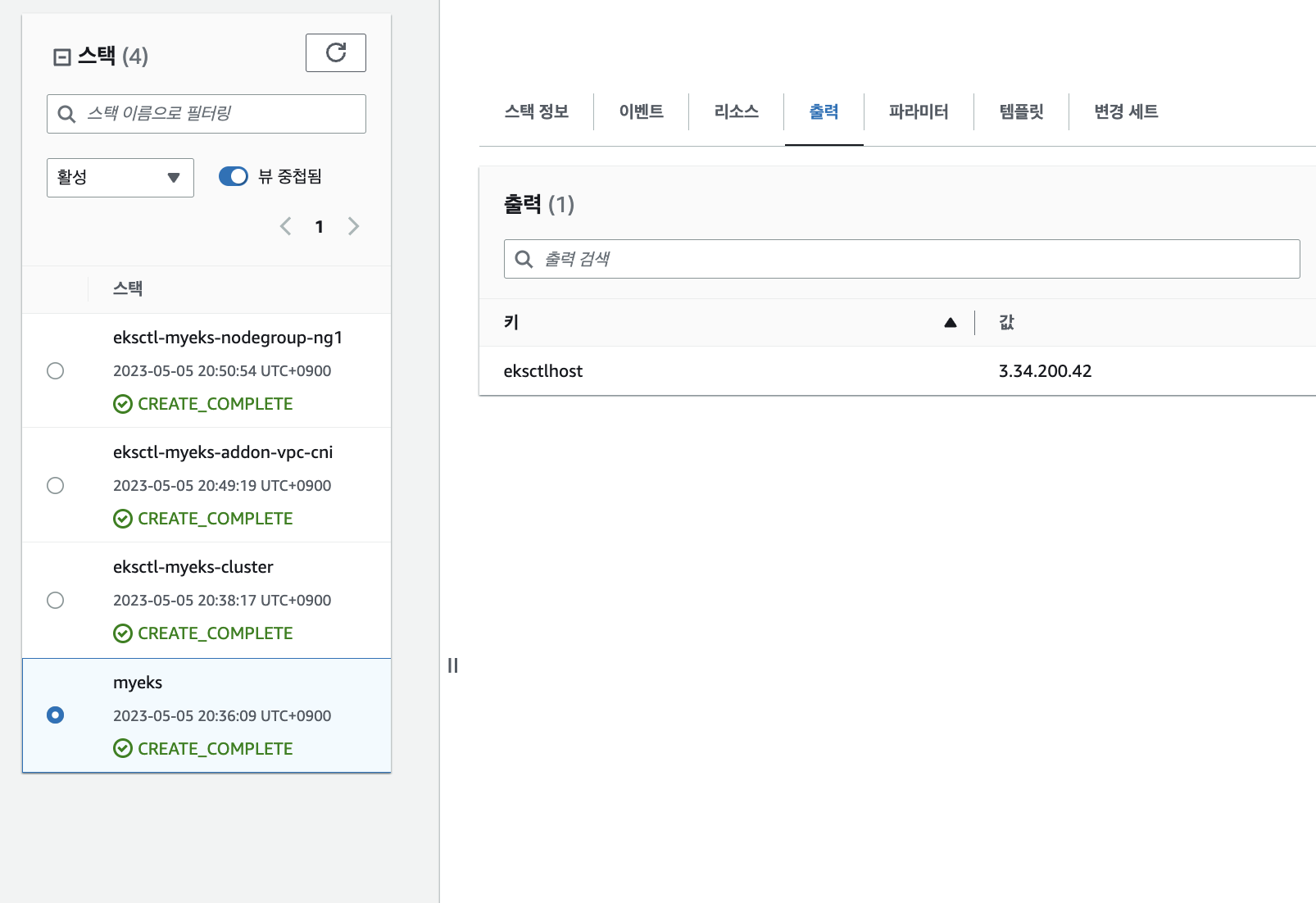

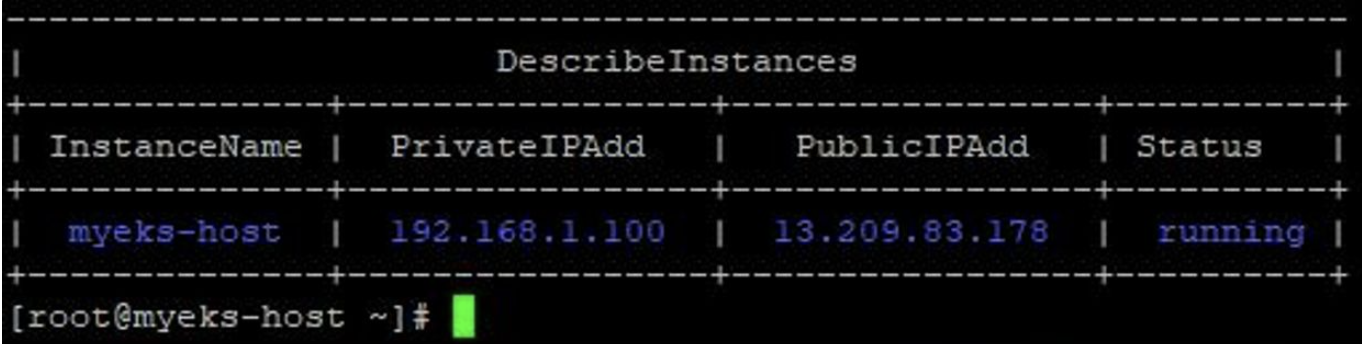

# CloudFormation 스택 배포 완료 후 작업용 EC2 IP 출력
aws cloudformation describe-stacks --stack-name **myeks** --query 'Stacks[*].**Outputs[0]**.OutputValue' --output text
# 작업용 EC2 SSH 접속
ssh -i **~/.ssh/kp-gasida.pem** ec2-user@$(aws cloudformation describe-stacks --stack-name **myeks** --query 'Stacks[*].Outputs[0].OutputValue' --output text)
# default 네임스페이스 적용
kubectl ns default
# (옵션) context 이름 변경
NICK=<각자 자신의 닉네임>
NICK=gasida
kubectl ctx
kubectl config rename-context admin@myeks.ap-northeast-2.eksctl.io $NICK
# ExternalDNS
MyDomain=<자신의 도메인>
echo "export MyDomain=<자신의 도메인>" >> /etc/profile
*MyDomain=gasida.link*
*echo "export MyDomain=gasida.link" >> /etc/profile*
MyDnzHostedZoneId=$(aws route53 list-hosted-zones-by-name --dns-name "${MyDomain}." --query "HostedZones[0].Id" --output text)
echo $MyDomain, $MyDnzHostedZoneId
curl -s -O <https://raw.githubusercontent.com/gasida/PKOS/main/aews/externaldns.yaml>
MyDomain=$MyDomain MyDnzHostedZoneId=$MyDnzHostedZoneId envsubst < externaldns.yaml | kubectl apply -f -
# AWS LB Controller
helm repo add eks <https://aws.github.io/eks-charts>
helm repo update
helm install aws-load-balancer-controller eks/aws-load-balancer-controller -n kube-system --set clusterName=$CLUSTER_NAME \\
--set serviceAccount.create=false --set serviceAccount.name=aws-load-balancer-controller

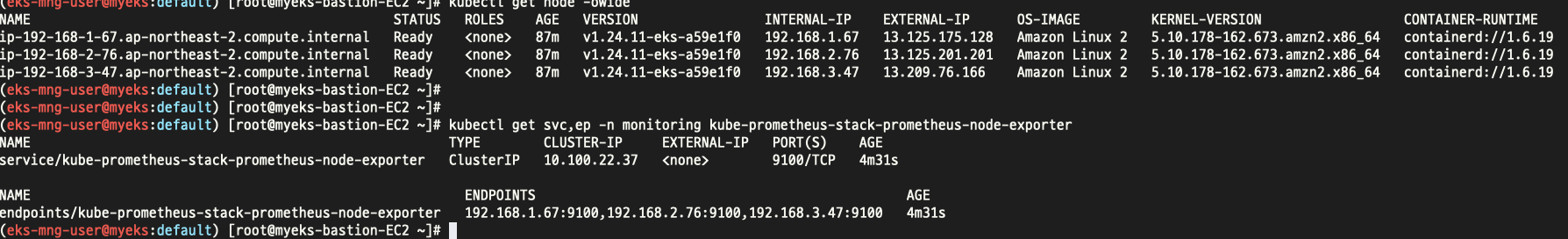

# 노드 IP 확인 및 PrivateIP 변수 지정
N1=$(kubectl get node --label-columns=topology.kubernetes.io/zone --selector=topology.kubernetes.io/zone=ap-northeast-2a -o jsonpath={.items[0].status.addresses[0].address})
N2=$(kubectl get node --label-columns=topology.kubernetes.io/zone --selector=topology.kubernetes.io/zone=ap-northeast-2b -o jsonpath={.items[0].status.addresses[0].address})
N3=$(kubectl get node --label-columns=topology.kubernetes.io/zone --selector=topology.kubernetes.io/zone=ap-northeast-2c -o jsonpath={.items[0].status.addresses[0].address})
echo "export N1=$N1" >> /etc/profile
echo "export N2=$N2" >> /etc/profile
echo "export N3=$N3" >> /etc/profile
echo $N1, $N2, $N3
# 노드 보안그룹 ID 확인
NGSGID=$(aws ec2 describe-security-groups --filters Name=group-name,Values='*ng1*' --query "SecurityGroups[*].[GroupId]" --output text)
aws ec2 authorize-security-group-ingress --group-id $NGSGID --protocol '-1' --cidr 192.168.1.0/24

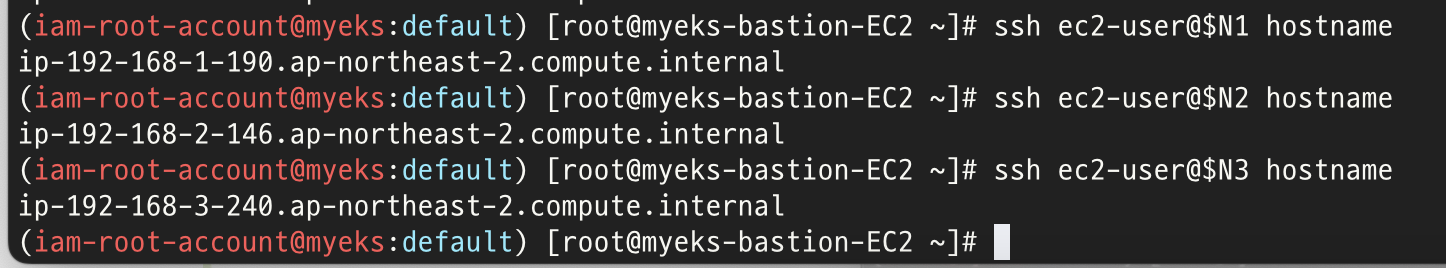

# 워커 노드 SSH 접속
for node in $N1 $N2 $N3; do ssh ec2-user@$node hostname; done
# 사용 리전의 인증서 ARN 확인
CERT_ARN=`aws acm list-certificates --query 'CertificateSummaryList[].CertificateArn[]' --output text`
echo $CERT_ARN
# repo 추가
helm repo add prometheus-community <https://prometheus-community.github.io/helm-charts>
# 파라미터 파일 생성
cat < monitor-values.yaml
**prometheus**:
prometheusSpec:
podMonitorSelectorNilUsesHelmValues: false
serviceMonitorSelectorNilUsesHelmValues: false
retention: 5d
retentionSize: "10GiB"
ingress:
enabled: true
ingressClassName: alb
hosts:
- prometheus.$MyDomain
paths:
- /*
annotations:
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/target-type: ip
alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
alb.ingress.kubernetes.io/group.name: study
alb.ingress.kubernetes.io/ssl-redirect: '443'
grafana:
defaultDashboardsTimezone: Asia/Seoul
adminPassword: prom-operator
ingress:
enabled: true
ingressClassName: alb
hosts:
- grafana.$MyDomain
paths:
- /*
annotations:
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/target-type: ip
alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
alb.ingress.kubernetes.io/group.name: study
alb.ingress.kubernetes.io/ssl-redirect: '443'
defaultRules:
create: false
kubeControllerManager:
enabled: false
kubeEtcd:
enabled: false
kubeScheduler:
enabled: false
alertmanager:
enabled: false
EOT

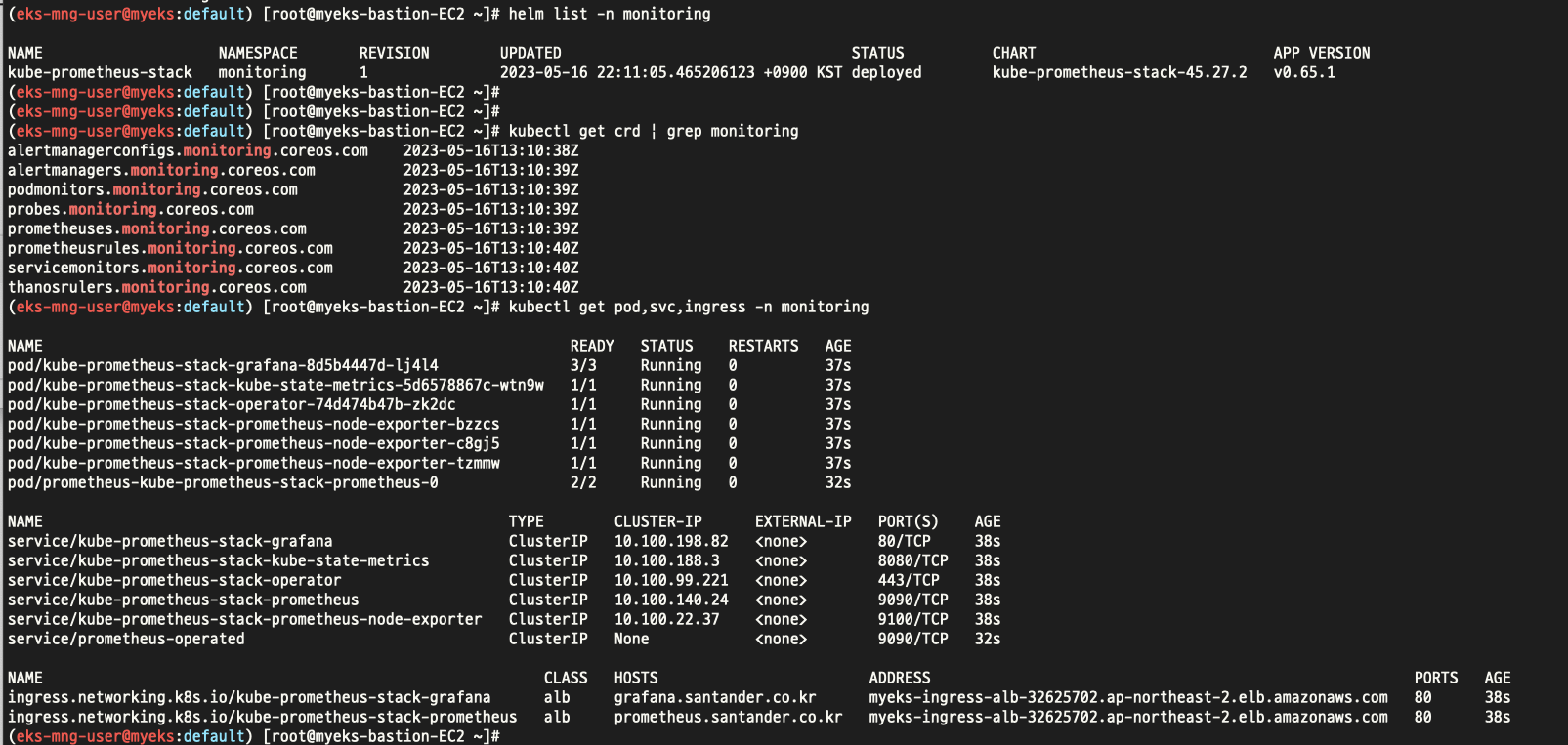

# 배포
kubectl create ns monitoring
helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 45.27.2 \\
--set prometheus.prometheusSpec.scrapeInterval='15s' --set prometheus.prometheusSpec.evaluationInterval='15s' \\
-f monitor-values.yaml --namespace monitoring
# Metrics-server 배포
kubectl apply -f <https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml>
ACK(AWS Controller for K8S)
aws 서비스 리소스를 k8s에서 직접 정의하고 사용할수있다. 즉 쿠버네티스 안에서 aws의 리소스를 생성하고 관리할수있다.
다만 모든 aws 서비스를 지원하지는 않는다.
- Maintenance Phases 관리 단계 : PREVIEW (테스트 단계, 상용 서비스 비권장) , GENERAL AVAILABILITY (상용 서비스 권장), DEPRECATED, NOT SUPPORTED
- GA 서비스 : ApiGatewayV2, CloudTrail, DynamoDB, EC2, ECR, EKS, IAM, KMS, Lambda, MemoryDB, RDS, S3, SageMaker…
- Preview 서비스 : ACM, ElastiCache, EventBridge, MQ, Route 53, SNS, SQS…
S3를 쿠버네티스(with helm)에서 배포하려면 다음과 같이 진행한다.
# 서비스명 변수 지정
**export SERVICE=s3**
# helm 차트 다운로드
~~#aws ecr-public get-login-password --region us-east-1 | helm registry login --username AWS --password-stdin public.ecr.aws~~
export RELEASE_VERSION=$(curl -sL <https://api.github.com/repos/aws-controllers-k8s/$SERVICE-controller/releases/latest> | grep '"tag_name":' | cut -d'"' -f4 | cut -c 2-)
helm pull oci://public.ecr.aws/aws-controllers-k8s/$SERVICE-chart --version=$RELEASE_VERSION
tar xzvf $SERVICE-chart-$RELEASE_VERSION.tgz
# helm chart 확인
tree ~/$SERVICE-chart
# ACK S3 Controller 설치
export ACK_SYSTEM_NAMESPACE=ack-system
export AWS_REGION=ap-northeast-2
helm install --create-namespace -n $ACK_SYSTEM_NAMESPACE ack-$SERVICE-controller --set aws.region="$AWS_REGION" ~/$SERVICE-chart
# 설치 확인
helm list --namespace $ACK_SYSTEM_NAMESPACE
kubectl -n ack-system get pods
kubectl get crd | grep $SERVICE
buckets.s3.services.k8s.aws 2022-04-24T13:24:00Z
kubectl get all -n ack-system
kubectl get-all -n ack-system
kubectl describe sa -n ack-system ack-s3-controller
우선 위와같이 ACK S3 컨트롤러를 설치해주고...
위와같이 IRSA를 설정해준다.
이제 S3를 배포해보자.
# [터미널1] 모니터링
watch -d aws s3 ls
# S3 버킷 생성을 위한 설정 파일 생성
export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query "Account" --output text)
export BUCKET_NAME=my-ack-s3-bucket-$AWS_ACCOUNT_ID
read -r -d '' BUCKET_MANIFEST <<EOF
apiVersion: s3.services.k8s.aws/v1alpha1
kind: Bucket
metadata:
name: $BUCKET_NAME
spec:
name: $BUCKET_NAME
EOF
echo "${BUCKET_MANIFEST}" > bucket.yaml
cat bucket.yaml | yh
# S3 버킷 생성
aws s3 ls
**kubectl create -f bucket.yaml**
*bucket.s3.services.k8s.aws/my-ack-s3-bucket-**<my account id>** created*

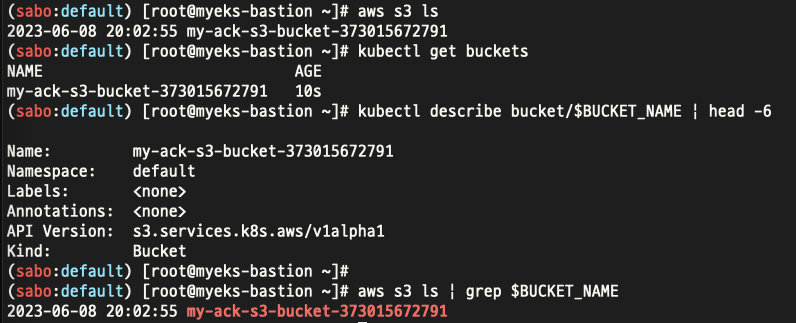

# S3 버킷 확인
aws s3 ls
**kubectl get buckets**
kubectl describe bucket/$BUCKET_NAME | head -6
Name: my-ack-s3-bucket-**<my account id>**
Namespace: default
Labels: <none>
Annotations: <none>
API Version: s3.services.k8s.aws/v1alpha1
Kind: Bucket
aws s3 ls | grep $BUCKET_NAME
2022-04-24 18:02:07 my-ack-s3-bucket-**<my account id>**
# S3 버킷 업데이트 : 태그 정보 입력
read -r -d '' BUCKET_MANIFEST <<EOF
apiVersion: s3.services.k8s.aws/v1alpha1
kind: Bucket
metadata:
name: $BUCKET_NAME
spec:
name: $BUCKET_NAME
**tagging:
tagSet:
- key: myTagKey
value: myTagValue**
EOF
echo "${BUCKET_MANIFEST}" > bucket.yaml
# S3 버킷 설정 업데이트 실행 : 필요 주석 자동 업뎃 내용이니 무시해도됨!
**kubectl apply -f bucket.yaml**
# S3 버킷 업데이트 확인
kubectl describe bucket/$BUCKET_NAME | grep Spec: -A5
Spec:
Name: my-ack-s3-bucket-**<my account id>**
Tagging:
Tag Set:
Key: myTagKey
Value: myTagValue
# S3 버킷 삭제
**kubectl delete -f bucket.yaml**
# verify the bucket no longer exists
kubectl get bucket/$BUCKET_NAME
aws s3 ls | grep $BUCKET_NAME
위와같이 손쉽게 S3가 배포된것을 확인할수있다.
이번엔 배포된 s3를 업데이트해보면..
위와같이 태깅이 추가된것을 확인할수있다.
EC2 배포는 다음과 같이 진행한다.(S3 와 거의 동일하다.)
# 서비스명 변수 지정 및 helm 차트 다운로드
**export SERVICE=ec2**
export RELEASE_VERSION=$(curl -sL <https://api.github.com/repos/aws-controllers-k8s/$SERVICE-controller/releases/latest> | grep '"tag_name":' | cut -d'"' -f4 | cut -c 2-)
helm pull oci://public.ecr.aws/aws-controllers-k8s/$SERVICE-chart --version=$RELEASE_VERSION
tar xzvf $SERVICE-chart-$RELEASE_VERSION.tgz
# helm chart 확인
tree ~/$SERVICE-chart
# ACK EC2-Controller 설치
export ACK_SYSTEM_NAMESPACE=ack-system
export AWS_REGION=ap-northeast-2
helm install -n $ACK_SYSTEM_NAMESPACE ack-$SERVICE-controller --set aws.region="$AWS_REGION" ~/$SERVICE-chart
# 설치 확인
helm list --namespace $ACK_SYSTEM_NAMESPACE
kubectl -n $ACK_SYSTEM_NAMESPACE get pods -l "app.kubernetes.io/instance=ack-$SERVICE-controller"
**kubectl get crd | grep $SERVICE**
dhcpoptions.ec2.services.k8s.aws 2023-05-30T12:45:13Z
elasticipaddresses.ec2.services.k8s.aws 2023-05-30T12:45:13Z
instances.ec2.services.k8s.aws 2023-05-30T12:45:13Z
internetgateways.ec2.services.k8s.aws 2023-05-30T12:45:13Z
natgateways.ec2.services.k8s.aws 2023-05-30T12:45:13Z
routetables.ec2.services.k8s.aws 2023-05-30T12:45:13Z
securitygroups.ec2.services.k8s.aws 2023-05-30T12:45:13Z
subnets.ec2.services.k8s.aws 2023-05-30T12:45:13Z
transitgateways.ec2.services.k8s.aws 2023-05-30T12:45:13Z
vpcendpoints.ec2.services.k8s.aws 2023-05-30T12:45:13Z
vpcs.ec2.services.k8s.aws 2023-05-30T12:45:13Z
Create an iamserviceaccount - AWS IAM role bound to a Kubernetes service account
eksctl create **iamserviceaccount** \\
--name **ack-**$SERVICE**-controller** \\
--namespace $ACK_SYSTEM_NAMESPACE \\
--cluster $CLUSTER_NAME \\
--attach-policy-arn $(aws iam list-policies --query 'Policies[?PolicyName==`**AmazonEC2FullAccess**`].Arn' --output text) \\
--**override-existing-serviceaccounts** --approve
# 확인 >> 웹 관리 콘솔에서 CloudFormation Stack >> IAM Role 확인
eksctl get iamserviceaccount --cluster $CLUSTER_NAME
# Inspecting the newly created Kubernetes Service Account, we can see the role we want it to assume in our pod.
kubectl get sa -n $ACK_SYSTEM_NAMESPACE
kubectl describe sa ack-$SERVICE-controller -n $ACK_SYSTEM_NAMESPACE
# Restart ACK service controller deployment using the following commands.
**kubectl -n $**ACK_SYSTEM_NAMESPACE **rollout restart deploy ack-$**SERVICE**-controller-$**SERVICE**-chart**
# IRSA 적용으로 Env, Volume 추가 확인
kubectl describe pod -n $ACK_SYSTEM_NAMESPACE -l k8s-app=$SERVICE-chart
...
VPC, Subnet 생성 삭제는 다음과같이 진행한다.
# [터미널1] 모니터링
while true; do aws ec2 describe-vpcs --query 'Vpcs[*].{VPCId:VpcId, CidrBlock:CidrBlock}' --output text; echo "-----"; sleep 1; done
# VPC 생성
cat <<EOF > vpc.yaml
apiVersion: **ec2.services.k8s.aws/v1alpha1**
kind: **VPC**
metadata:
name: **vpc-tutorial-test**
spec:
cidrBlocks:
- **10.0.0.0/16**
enableDNSSupport: true
enableDNSHostnames: true
EOF
**kubectl apply -f vpc.yaml**
*vpc.ec2.services.k8s.aws/vpc-tutorial-test created*
# VPC 생성 확인
kubectl get vpcs
kubectl describe vpcs
**aws ec2 describe-vpcs --query 'Vpcs[*].{VPCId:VpcId, CidrBlock:CidrBlock}' --output text**
# [터미널1] 모니터링
VPCID=$(kubectl get vpcs vpc-tutorial-test -o jsonpath={.status.vpcID})
while true; do aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" --query 'Subnets[*].{SubnetId:SubnetId, CidrBlock:CidrBlock}' --output text; echo "-----"; sleep 1 ; done
# 서브넷 생성
VPCID=$(kubectl get vpcs vpc-tutorial-test -o jsonpath={.status.vpcID})
cat <<EOF > subnet.yaml
apiVersion: **ec2**.services.k8s.aws/v1alpha1
kind: **Subnet**
metadata:
name: **subnet-tutorial-test**
spec:
cidrBlock: **10.0.0.0/20**
vpcID: $VPCID
EOF
**kubectl apply -f subnet.yaml**
# 서브넷 생성 확인
kubectl get subnets
kubectl describe subnets
**aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPCID" --query 'Subnets[*].{SubnetId:SubnetId, CidrBlock:CidrBlock}' --output text**
# 리소스 삭제
kubectl delete -f subnet.yaml && kubectl delete -f vpc.yaml
이번에는 VPC 워크플로우를 생성해보고자 한다.
cat <<EOF > vpc-workflow.yaml
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **VPC**
metadata:
name: **tutorial-vpc**
spec:
cidrBlocks:
- **10.0.0.0/16**
enableDNSSupport: true
enableDNSHostnames: true
tags:
- key: name
value: vpc-tutorial
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **InternetGateway**
metadata:
name: **tutorial-igw**
spec:
**vpcRef**:
from:
name: **tutorial-vpc**
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **NATGateway**
metadata:
name: **tutorial-natgateway1**
spec:
**subnetRef**:
from:
name: tutorial-public-subnet1
**allocationRef**:
from:
name: tutorial-eip1
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **ElasticIPAddress**
metadata:
name: **tutorial-eip1**
spec:
tags:
- key: name
value: eip-tutorial
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **RouteTable**
metadata:
name: **tutorial-public-route-table**
spec:
**vpcRef**:
from:
name: tutorial-vpc
**routes**:
- destinationCIDRBlock: 0.0.0.0/0
**gatewayRef**:
from:
name: tutorial-igw
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **RouteTable**
metadata:
name: **tutorial-private-route-table-az1**
spec:
**vpcRef**:
from:
name: tutorial-vpc
routes:
- destinationCIDRBlock: 0.0.0.0/0
**natGatewayRef**:
from:
name: tutorial-natgateway1
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **Subnet**
metadata:
name: tutorial-**public**-subnet1
spec:
availabilityZone: **ap-northeast-2a**
cidrBlock: **10.0.0.0/20**
mapPublicIPOnLaunch: true
**vpcRef**:
from:
name: tutorial-vpc
**routeTableRefs**:
- from:
name: tutorial-public-route-table
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **Subnet**
metadata:
name: tutorial-**private**-subnet1
spec:
availabilityZone: **ap-northeast-2a**
cidrBlock: **10.0.128.0/20**
**vpcRef**:
from:
name: tutorial-vpc
**routeTableRefs**:
- from:
name: tutorial-private-route-table-az1
---
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **SecurityGroup**
metadata:
name: tutorial-security-group
spec:
description: "ack security group"
name: tutorial-sg
vpcRef:
from:
name: tutorial-vpc
ingressRules:
- ipProtocol: tcp
fromPort: 22
toPort: 22
ipRanges:
- cidrIP: "0.0.0.0/0"
description: "ingress"
EOF
# VPC 환경 생성
**kubectl apply -f vpc-workflow.yaml**
# [터미널1] NATGW 생성 완료 후 tutorial-private-route-table-az1 라우팅 테이블 ID가 확인되고 그후 tutorial-private-subnet1 서브넷ID가 확인됨 > 5분 정도 시간 소요
**watch -d kubectl get routetables,subnet**
# VPC 환경 생성 확인
kubectl describe vpcs
kubectl describe internetgateways
kubectl describe routetables
kubectl describe natgateways
kubectl describe elasticipaddresses
kubectl describe securitygroups
# 배포 도중 2개의 서브넷 상태 정보 비교 해보자
**kubectl describe subnets
...
Status**:
**Conditions**:
Last Transition Time: 2023-06-04T02:15:25Z
Message: Reference resolution failed
Reason: the referenced resource is not synced yet. resource:RouteTable, namespace:default, name:tutorial-private-route-table-az1
**Status: Unknown**
Type: ACK.ReferencesResolved
**...
Status**:
Ack Resource Metadata:
Arn: arn:aws:ec2:ap-northeast-2:911283464785:subnet/subnet-0f5ae09e5d680030a
Owner Account ID: 911283464785
Region: ap-northeast-2
Available IP Address Count: 4091
**Conditions**:
Last Transition Time: 2023-06-04T02:14:45Z
**Status: True**
Type: ACK.ReferencesResolved
Last Transition Time: 2023-06-04T02:14:45Z
Message: Resource synced successfully
Reason:
**Status: True**
Type: ACK.ResourceSynced
...
참고로 앞서 EC2, VPC등의 실습을 진행해야 VPC워크플로우 생성이 된다. CRD를 미리 생성해줘야 하기 때문이다.
또한 리소스 의존성으로 늦게 생성되는것들이 있어서 좀 기다려야 한다.
이제 퍼블릭 서브넷에 인스턴스를 생성해보자.
# public 서브넷 ID 확인
PUBSUB1=$(kubectl get subnets **tutorial-public-subnet1** -o jsonpath={.status.subnetID})
echo $PUBSUB1
# 보안그룹 ID 확인
TSG=$(kubectl get securitygroups **tutorial-security-group** -o jsonpath={.status.id})
echo $TSG
# Amazon Linux 2 최신 AMI ID 확인
AL2AMI=$(aws ec2 describe-images --owners **amazon** --filters "Name=name,Values=amzn2-ami-hvm-2.0.*-x86_64-gp2" --query 'Images[0].ImageId' --output text)
echo $AL2AMI
# 각자 자신의 SSH 키페어 이름 변수 지정
MYKEYPAIR=<각자 자신의 SSH 키페어 이름>
MYKEYPAIR=kp-gasida
**# 변수 확인 > 특히 서브넷 ID가 확인되었는지 꼭 확인하자!**
echo $PUBSUB1 , $TSG , $AL2AMI , $MYKEYPAIR
# [터미널1] 모니터링
while true; do aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output table; date ; sleep 1 ; done
# public 서브넷에 인스턴스 생성
cat <<EOF > tutorial-bastion-host.yaml
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **Instance**
metadata:
name: **tutorial-bastion-host**
spec:
imageID: $AL2AMI # AL2 AMI ID - ap-northeast-2
instanceType: **t3.medium**
subnetID: $PUBSUB1
securityGroupIDs:
- $TSG
keyName: $MYKEYPAIR
tags:
- key: producer
value: ack
EOF
**kubectl apply -f tutorial-bastion-host.yaml**
# 인스턴스 생성 확인
**kubectl** get instance
**kubectl** describe instance

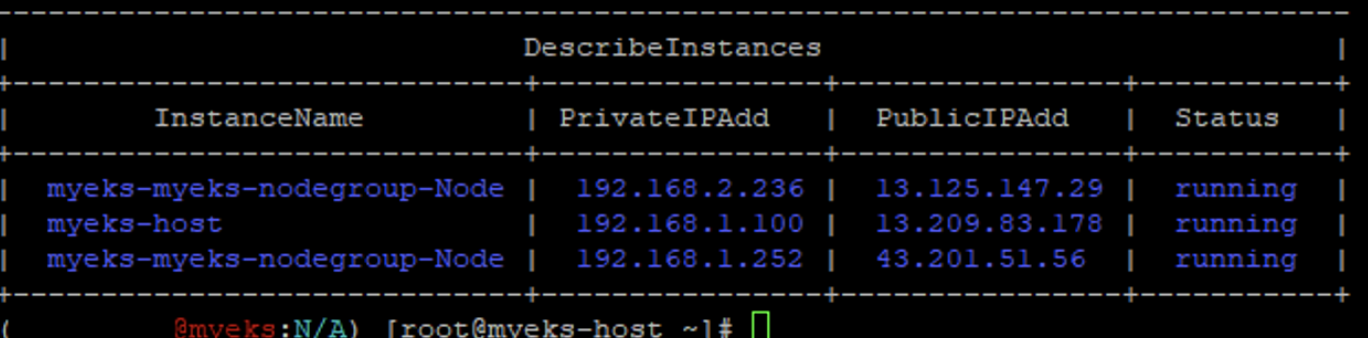

aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output table
위와같이 새로운 인스턴스 생성을 확인할수있다.
허나 아직 접속이 되지 않을것이다.
아래처럼 egress 규칙을 추가해야한다.
cat <<EOF > modify-sg.yaml
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: SecurityGroup
metadata:
name: tutorial-security-group
spec:
description: "ack security group"
name: tutorial-sg
vpcRef:
from:
name: tutorial-vpc
ingressRules:
- ipProtocol: tcp
fromPort: 22
toPort: 22
ipRanges:
- cidrIP: "0.0.0.0/0"
description: "ingress"
**egressRules:
- ipProtocol: '-1'
ipRanges:
- cidrIP: "0.0.0.0/0"
description: "egress"**
EOF
kubectl apply -f modify-sg.yaml
# 변경 확인 >> 보안그룹에 아웃바운드 규칙 확인
kubectl logs -n $ACK_SYSTEM_NAMESPACE -l k8s-app=ec2-chart -f
이번에는 프라이빗 서브넷에 인스턴스를 생성해보자.
# private 서브넷 ID 확인 >> NATGW 생성 완료 후 RT/SubnetID가 확인되어 다소 시간 필요함
PRISUB1=$(kubectl get subnets **tutorial-private-subnet1** -o jsonpath={.status.subnetID})
**echo $PRISUB1**
**# 변수 확인 > 특히 private 서브넷 ID가 확인되었는지 꼭 확인하자!**
echo $PRISUB1 , $TSG , $AL2AMI , $MYKEYPAIR
# private 서브넷에 인스턴스 생성
cat <<EOF > tutorial-instance-private.yaml
apiVersion: ec2.services.k8s.aws/v1alpha1
kind: **Instance**
metadata:
name: **tutorial-instance-private**
spec:
imageID: $AL2AMI # AL2 AMI ID - ap-northeast-2
instanceType: **t3.medium**
subnetID: $PRISUB1
securityGroupIDs:
- $TSG
keyName: $MYKEYPAIR
tags:
- key: producer
value: ack
EOF
**kubectl apply -f tutorial-instance-private.yaml**
# 인스턴스 생성 확인
**kubectl** get instance
**kubectl** describe instance
aws ec2 describe-instances --query "Reservations[*].Instances[*].{PublicIPAdd:PublicIpAddress,PrivateIPAdd:PrivateIpAddress,InstanceName:Tags[?Key=='Name']|[0].Value,Status:State.Name}" --filters Name=instance-state-name,Values=running --output table
위와같이 프라이빗 인스턴스도 생성된것이 확인된다.
RDS도 다음과같이 진행하면된다.
# 서비스명 변수 지정 및 helm 차트 다운로드
**export SERVICE=rds**
export RELEASE_VERSION=$(curl -sL <https://api.github.com/repos/aws-controllers-k8s/$SERVICE-controller/releases/latest> | grep '"tag_name":' | cut -d'"' -f4 | cut -c 2-)
helm pull oci://public.ecr.aws/aws-controllers-k8s/$SERVICE-chart --version=$RELEASE_VERSION
tar xzvf $SERVICE-chart-$RELEASE_VERSION.tgz
# helm chart 확인
tree ~/$SERVICE-chart
# ACK EC2-Controller 설치
export ACK_SYSTEM_NAMESPACE=ack-system
export AWS_REGION=ap-northeast-2
helm install -n $ACK_SYSTEM_NAMESPACE ack-$SERVICE-controller --set aws.region="$AWS_REGION" ~/$SERVICE-chart
# 설치 확인
helm list --namespace $ACK_SYSTEM_NAMESPACE
kubectl -n $ACK_SYSTEM_NAMESPACE get pods -l "app.kubernetes.io/instance=ack-$SERVICE-controller"
**kubectl get crd | grep $SERVICE**
# Create an iamserviceaccount - AWS IAM role bound to a Kubernetes service account
eksctl create **iamserviceaccount** \\
--name **ack-**$SERVICE**-controller** \\
--namespace $ACK_SYSTEM_NAMESPACE \\
--cluster $CLUSTER_NAME \\
--attach-policy-arn $(aws iam list-policies --query 'Policies[?PolicyName==`**AmazonRDSFullAccess**`].Arn' --output text) \\
--**override-existing-serviceaccounts** --approve
# 확인 >> 웹 관리 콘솔에서 CloudFormation Stack >> IAM Role 확인
eksctl get iamserviceaccount --cluster $CLUSTER_NAME
# Inspecting the newly created Kubernetes Service Account, we can see the role we want it to assume in our pod.
kubectl get sa -n $ACK_SYSTEM_NAMESPACE
kubectl describe sa ack-$SERVICE-controller -n $ACK_SYSTEM_NAMESPACE
# Restart ACK service controller deployment using the following commands.
**kubectl -n $**ACK_SYSTEM_NAMESPACE **rollout restart deploy ack-$**SERVICE**-controller-$**SERVICE**-chart**
# IRSA 적용으로 Env, Volume 추가 확인
kubectl describe pod -n $ACK_SYSTEM_NAMESPACE -l k8s-app=$SERVICE-chart
...
# DB 암호를 위한 secret 생성
RDS_INSTANCE_NAME="<your instance name>"
RDS_INSTANCE_PASSWORD="<your instance password>"
RDS_INSTANCE_NAME=**myrds**
RDS_INSTANCE_PASSWORD=**qwe12345**
kubectl create secret generic "${RDS_INSTANCE_NAME}-password" --from-literal=password="${RDS_INSTANCE_PASSWORD}"
# 확인
kubectl get secret $RDS_INSTANCE_NAME-password
# [터미널1] 모니터링
RDS_INSTANCE_NAME=myrds
watch -d "kubectl describe dbinstance "${RDS_INSTANCE_NAME}" | grep 'Db Instance Status'"
# RDS 배포 생성 : 15분 이내 시간 소요 >> 보안그룹, 서브넷 등 필요한 옵션들은 추가해서 설정해보자!
cat <<EOF > rds-mariadb.yaml
apiVersion: rds.services.k8s.aws/v1alpha1
kind: DBInstance
metadata:
name: "${RDS_INSTANCE_NAME}"
spec:
allocatedStorage: 20
dbInstanceClass: **db.t4g.micro**
dbInstanceIdentifier: "${RDS_INSTANCE_NAME}"
engine: **mariadb**
engineVersion: "**10.6**"
masterUsername: "**admin**"
masterUserPassword:
namespace: default
name: "${RDS_INSTANCE_NAME}-password"
key: password
EOF
kubectl apply -f rds-mariadb.yaml
# 생성 확인
kubectl get dbinstances ${RDS_INSTANCE_NAME}
kubectl describe dbinstance "${RDS_INSTANCE_NAME}"
aws rds describe-db-instances --db-instance-identifier $RDS_INSTANCE_NAME | jq
kubectl describe dbinstance "${RDS_INSTANCE_NAME}" | grep 'Db Instance Status'
Db Instance Status: **creating**
kubectl describe dbinstance "${RDS_INSTANCE_NAME}" | grep 'Db Instance Status'
Db Instance Status: **backing-up**
kubectl describe dbinstance "${RDS_INSTANCE_NAME}" | grep 'Db Instance Status'
Db Instance Status: **available**
# 생성 완료 대기 : for 지정 상태가 완료되면 정상 종료됨
****kubectl wait dbinstances ${RDS_INSTANCE_NAME} **--for=condition=ACK.ResourceSynced** --timeout=15m
*dbinstance.rds.services.k8s.aws/myrds condition met*
이번엔 Flux에 대해 스터디를 진행한다.
설치 방법은 다음과 같다.
# Flux CLI 설치
**curl -s <https://fluxcd.io/install.sh> | sudo bash**
. <(flux completion bash)
# 버전 확인
**flux --version**
flux version 2.0.0-rc.5
# 자신의 Github 토큰과 유저이름 변수 지정
export GITHUB_TOKEN=
export GITHUB_USER=
export GITHUB_TOKEN=ghp_###
export GITHUB_USER=gasida
# Bootstrap
## Creates a git repository **fleet-infra** on your GitHub account.
## Adds Flux component manifests to the repository.
## **Deploys** Flux Components to your Kubernetes Cluster.
## Configures Flux components to track the path /clusters/my-cluster/ in the repository.
**flux bootstrap github \\
--owner=$GITHUB_USER \\
--repository=fleet-infra \\
--branch=main \\
--path=./clusters/my-cluster \\
--personal**
# 설치 확인
kubectl get pods -n flux-system
kubectl get-all -n flux-system
kubectl get crd | grep fluxc
**kubectl get gitrepository -n flux-system**
NAME URL AGE READY STATUS
flux-system ssh://git@github.com/gasida/fleet-infra 4m6s True stored artifact for revision 'main@sha1:4172548433a9f4e089758c3512b0b24d289e9702'
위와같이 설치 진행
Gitops 도구 설치는 아래와같이 진행한다.
# gitops 도구 설치
curl --silent --location "<https://github.com/weaveworks/weave-gitops/releases/download/v0.24.0/gitops-$(uname)-$>(uname -m).tar.gz" | tar xz -C /tmp
sudo mv /tmp/gitops /usr/local/bin
gitops version
# flux 대시보드 설치
PASSWORD="password"
gitops create dashboard ww-gitops --password=$PASSWORD
# 확인
flux -n flux-system get helmrelease
kubectl -n flux-system get pod,svc
이후 ingress 를 설정해준다.
CERT_ARN=`aws acm list-certificates --query 'CertificateSummaryList[].CertificateArn[]' --output text`
echo $CERT_ARN
# Ingress 설정
cat <<EOT > gitops-ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: gitops-ingress
annotations:
alb.ingress.kubernetes.io/certificate-arn: $CERT_ARN
alb.ingress.kubernetes.io/group.name: **study**
alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
alb.ingress.kubernetes.io/load-balancer-name: myeks-ingress-alb
alb.ingress.kubernetes.io/scheme: internet-facing
alb.ingress.kubernetes.io/ssl-redirect: "443"
alb.ingress.kubernetes.io/success-codes: 200-399
alb.ingress.kubernetes.io/target-type: ip
spec:
ingressClassName: alb
rules:
- host: gitops.$MyDomain
http:
paths:
- backend:
service:
name: ww-gitops-weave-gitops
port:
number: 9001
path: /
pathType: Prefix
EOT
kubectl apply -f gitops-ingress.yaml -n flux-system
# 배포 확인
kubectl get ingress -n flux-system
# GitOps 접속 정보 확인 >> 웹 접속 후 정보 확인
echo -e "GitOps Web <https://gitops.$MyDomain>"
헬로월드 예제 소스 코드이다.
# 소스 생성 : 유형 - git, helm, oci, bucket
# flux create source {소스 유형}
# 악분(최성욱)님이 준비한 repo로 git 소스 생성
GITURL="<https://github.com/sungwook-practice/fluxcd-test.git>"
**flux create source git nginx-example1 --url=$GITURL --branch=main --interval=30s**
# 소스 확인
flux get sources git
kubectl -n flux-system get gitrepositories
이후 flux 애플리케이션 생성은 다음과같이 진행한다.
# [터미널] 모니터링
watch -d kubectl get pod,svc nginx-example1
# flux 애플리케이션 생성 : nginx-example1
flux create **kustomization** **nginx-example1** --target-namespace=default --interval=1m --source=nginx-example1 --path="**./nginx**" --health-check-timeout=2m
# 확인
kubectl get pod,svc nginx-example1
kubectl get kustomizations -n flux-system
flux get kustomizations
설치 완료 및 확인
'job > eks' 카테고리의 다른 글
| eks 6주차 (0) | 2023.05.31 |
|---|---|
| eks 5주차 (0) | 2023.05.23 |
| 4주차 eks 스터디 (0) | 2023.05.16 |
| 3주차 eks 스터디 (0) | 2023.05.13 |
| eks 2주차 (0) | 2023.05.02 |
