6주차 스터디 - ArgoCD 3/3

실습 환경 배포

kind mgmt k8s 배포 + ingress-nginx + Argo CD

# kind k8s 배포
kind create cluster --name mgmt --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  labels:
    ingress-ready: true
  extraPortMappings:
  - containerPort: 80
    hostPort: 80
    protocol: TCP
  - containerPort: 443
    hostPort: 443
    protocol: TCP
  - containerPort: 30000
    hostPort: 30000
EOF

# NGINX ingress 배포
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/main/deploy/static/provider/kind/deploy.yaml
KUBE_EDITOR="nano" kubectl edit -n ingress-nginx deployments/ingress-nginx-controller
...
  - --enable-ssl-passthrough
혹은
kubectl get deployment ingress-nginx-controller -n ingress-nginx -o yaml \
| sed '/- --publish-status-address=localhost/a\
        - --enable-ssl-passthrough' | kubectl apply -f -


#
openssl req -x509 -nodes -days 365 -newkey rsa:2048 \
  -keyout argocd.example.com.key \
  -out argocd.example.com.crt \
  -subj "/CN=argocd.example.com/O=argocd"

#
kubectl create ns argocd

# tls 시크릿 생성
kubectl -n argocd create secret tls argocd-server-tls \
  --cert=argocd.example.com.crt \
  --key=argocd.example.com.key

#
cat <<EOF > argocd-values.yaml
global:
  domain: argocd.example.com

server:
  ingress:
    enabled: true
    ingressClassName: nginx
    annotations:
      nginx.ingress.kubernetes.io/force-ssl-redirect: "true"
      nginx.ingress.kubernetes.io/ssl-passthrough: "true"
    tls: true
EOF

# 설치 : Argo CD v3.1.9
helm repo add argo https://argoproj.github.io/argo-helm
helm install argocd argo/argo-cd --version 9.0.5 -f argocd-values.yaml --namespace argocd

# 도메인 설정
## macOS의 /etc/hosts 파일 수정
echo "127.0.0.1 argocd.example.com" | sudo tee -a /etc/hosts
cat /etc/hosts

## C:\Windows\System32\drivers\etc\hosts 관리자모드에서 메모장에 내용 추가
127.0.0.1 argocd.example.com

# 접속 확인
curl -vk https://argocd.example.com/

# 최초 접속 암호 확인
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d ;echo
38L2ZmXne7jIaRSZ

ARGOPW=<최초 접속 암호>
ARGOPW=YYpjg453yyKi4HdK

# argocd 서버 cli 로그인
argocd login argocd.example.com --insecure --username admin --password $ARGOPW

# 확인
argocd cluster list
argocd proj list
argocd account list

# admin 계정 암호 변경 : qwe12345
argocd account update-password --current-password $ARGOPW --new-password qwe12345

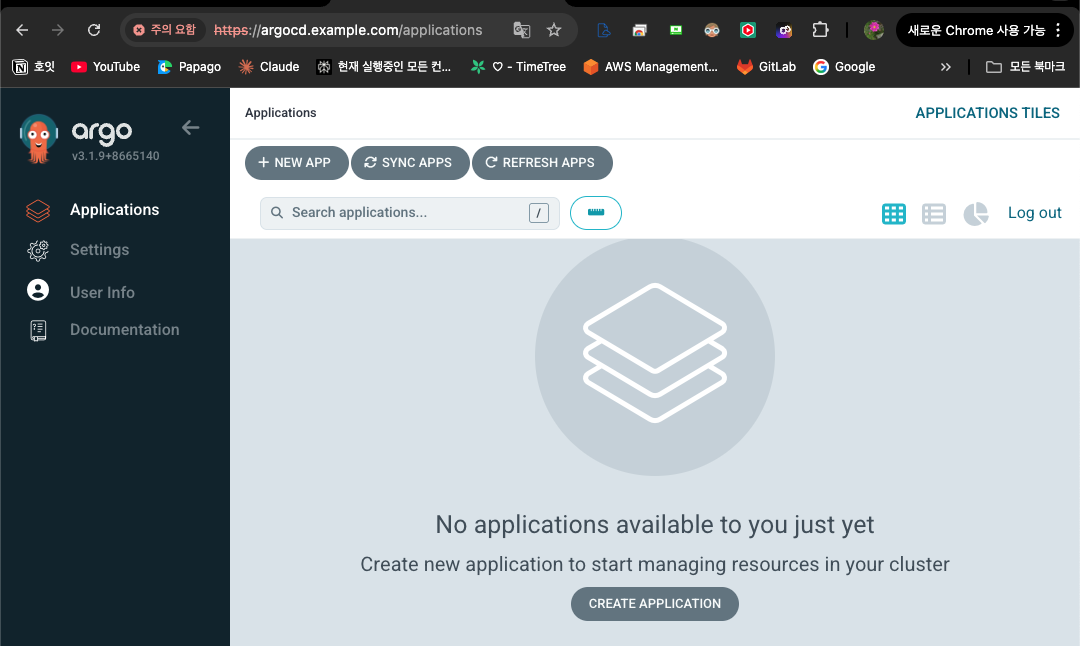

# Argo CD 웹 접속 주소 확인 : admin 계정 / qwe12345
open "http://argocd.example.com"
open "https://argocd.example.com"





kind dev/prd k8s 배포 & k8s 자격증명 수정

# 설치 전 확인
kubectl config get-contexts
CURRENT   NAME        CLUSTER     AUTHINFO    NAMESPACE
*         kind-mgmt   kind-mgmt   kind-mgmt

# 도커 네트워크 확인 : mgmt 컨테이너 IP 확인
docker network ls
docker network inspect kind | jq


# kind k8s 배포
kind create cluster --name dev --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 31000
    hostPort: 31000
EOF

kind create cluster --name prd --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 32000
    hostPort: 32000
EOF


# 설치 후 확인
kubectl config get-contexts
CURRENT   NAME        CLUSTER     AUTHINFO    NAMESPACE
          kind-dev    kind-dev    kind-dev
          kind-mgmt   kind-mgmt   kind-mgmt
*         kind-prd    kind-prd    kind-prd

# mgmt k8s 자격증명 변경
kubectl config use-context kind-mgmt
kubectl config get-contexts

#
kubectl get node -v=6 --context kind-mgmt
kubectl get node -v=6 --context kind-dev
kubectl get node -v=6 --context kind-prd
cat ~/.kube/config

kubectl get pod -A --context kind-mgmt
kubectl get pod -A --context kind-dev
kubectl get pod -A --context kind-prd

# alias 설정
alias k8s1='kubectl --context kind-mgmt'
alias k8s2='kubectl --context kind-dev'
alias k8s3='kubectl --context kind-prd'

# 확인
k8s1 get node -owide
k8s2 get node -owide
k8s3 get node -owide


# 도커 네트워크 확인 : 컨테이너 IP 확인
docker network inspect kind | grep -E 'Name|IPv4Address'
        "Name": "kind",
                "Name": "prd-control-plane",
                "IPv4Address": "192.168.97.4/24",
                "Name": "mgmt-control-plane",
                "IPv4Address": "192.168.97.2/24",
                "Name": "dev-control-plane",
                "IPv4Address": "192.168.97.3/24",

# 도메인 통신 확인 : 물론 IP 통신도 가능
docker ps # k8s-api 6443 포트 포워딩 확인
docker exec -it mgmt-control-plane curl -sk https://dev-control-plane:6443/version
docker exec -it mgmt-control-plane curl -sk https://prd-control-plane:6443/version
docker exec -it dev-control-plane curl -sk https://prd-control-plane:6443/version

# local 에서 ping 통신 확인
ping -c 1 192.168.97.2
ping -c 1 192.168.97.3
ping -c 1 192.168.97.4

# dev/prd k8s 에 api server 주소 컨테이너 IP로 변경
cp ~/.kube/config ./kube-config.bak
vi ~/.kube/config
...
    server: https://192.168.97.3:6443
  name: kind-dev
  ...
    server: https://192.168.97.4:6443
  name: kind-prd
...

# 확인
kubectl get node -v=6 --context kind-dev
kubectl get node -v=6 --context kind-prd
